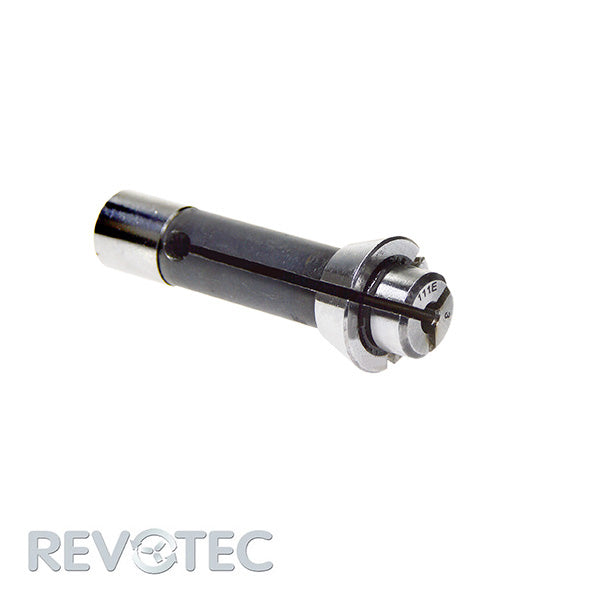

111E (F10) round

Features: Dead-length collet according to DIN 6343. Spring steel, hardened and ground.

Application: For clamping workpieces (chuck or bar processing) in lathes (conventional or CNC-controlled) in the spindle or in the collet chuck.

Technical data
Clamping range
mm
increment
mm
Ø d
mm
Ø D
mm
L
mm
α
°
1.0 - 10.0
0.5
10.0 16.0 46.0 20°
  • Round smooth bore ≤ Ø 8.0 mm, serrated (radial grooves) > Ø 8.0 mm
  • Only the nominal size can be clamped
  • Grinding to intermediate sizes avaialble on request
Availability:
3 pieces
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
3 pieces
Availability:
Out of stock
Availability:
3 pieces
Availability:
Out of stock
Availability:
Out of stock
Availability:
2 pieces
Availability:
Out of stock
SKU A001.0111.0010
Original price 36,75 € - Original price 47,50 €
Original price
Preis: 36,75 €
36,75 € - 47,50 €
Current price Preis: Preis: 36,75 €
plus VAT (if applicable), plus delivery charges
