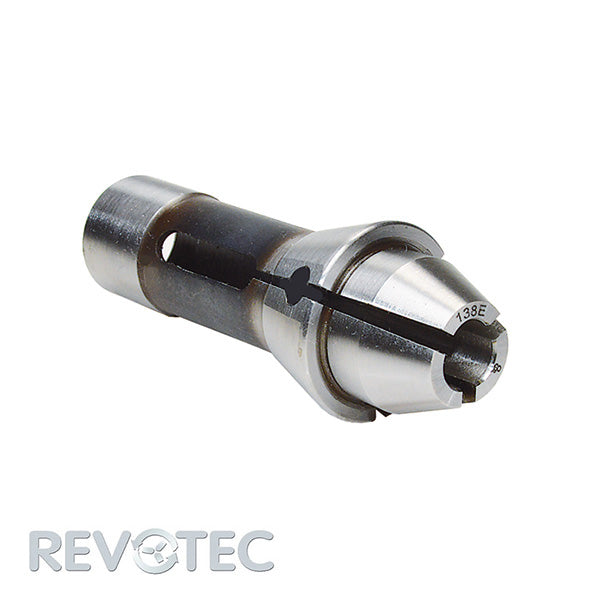

138E (F20) round, tapered extended nose

Fetaures: Dead-length collet with round bore and tapered extended nose according to DIN 6343. Spring steel. hardened and ground.

  • Length of extended nose: 20 mm
  • Taper length: 13 mm
  • Smooth round bore for all diameters
  • Only the nominal size can be clamped.

Application: For use on the pick-up spindle or to avoid possible tool interferences

Technical data
Clamping range
mm
increment
mm
Ø d
mm
Ø D
mm
L
mm
l
mm
Y
mm
α
°
1.0 - 16.0
0.5
15.0 21.0 80.0 20.0 13.0 16°
  • Selected diameters available ex stock
  • different diameters available on request
  • grinding to intermediate diameters available on request.
Availability:
1 pieces
Availability:
3 pieces
Availability:
3 pieces
Availability:
2 pieces
Availability:
2 pieces
Availability:
2 pieces
Availability:
3 pieces
Availability:
2 pieces
Availability:
3 pieces
SKU A001.0138-20.0020
Original price 116,00 € - Original price 126,00 €
Original price
Preis: 116,00 €
116,00 € - 126,00 €
Current price Preis: Preis: 116,00 €
plus VAT (if applicable), plus delivery charges
