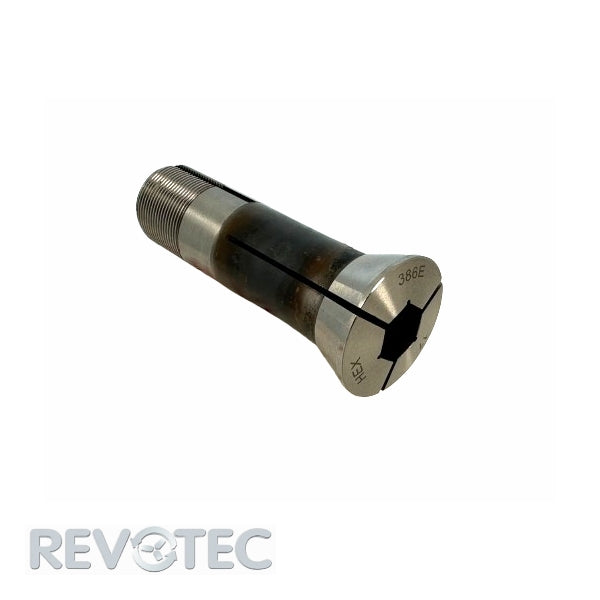

386E (K32) hexagon
Features: Hexagonal draw-in collet according to DIN 6341. Spring steel, hardened and ground.
Application: For clamping workpieces in dividing heads, grinding machines or second-operation lathes. The draw-in collets are closed by being drawn back into the collet seating by means of a draw bar.
Technical data
| hex size mm max. |
increment mm |
Ø d mm |
Ø D mm |
L mm |
α ° |
GA |
| 4.0 - 22.0 |
0.5/1.0 |
32.0 | 45.0 | 110.0 | 20° | Tr32x1.5 |
- Hexagonal profile with smooth bore
- Only the nominal size can be clamped
- Different hex sizes available on request
Availability:
4 pieces
Availability:
3 pieces
Availability:
2 pieces
Availability:
2 pieces
Availability:
2 pieces
Availability:
3 pieces
Availability:
Out of stock
Availability:
1 pieces
Availability:
2 pieces
Availability:
Out of stock
Availability:
2 pieces
Availability:
1 pieces
Availability:
1 pieces
Availability:
2 pieces
Availability:
2 pieces
Availability:
2 pieces
Availability:
4 pieces
Availability:
1 pieces
Availability:
Out of stock
Availability:
4 pieces
SKU A003.0386.1040
Original price
94,25 €
-
Original price
96,50 €
Original price
Preis: 94,25 €
94,25 €
-
96,50 €
Current price
Preis:
Preis: 94,25 €
plus VAT (if applicable), plus delivery charges
