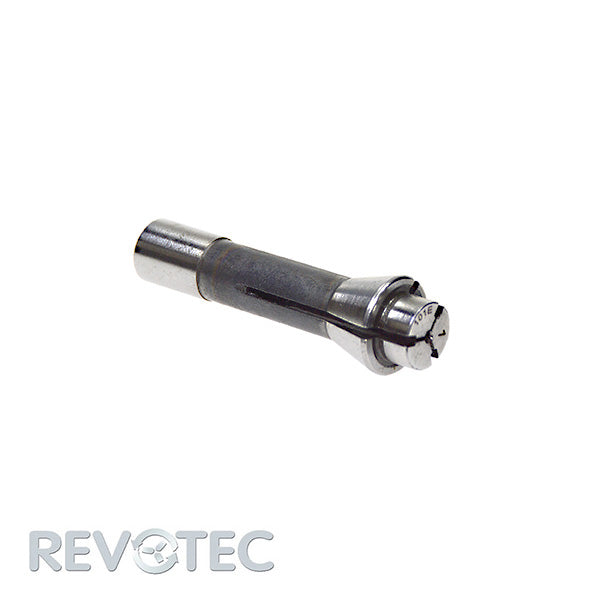

101E (F8) round
Features: Dead-length collet according to DIN 6343. Spring steel, hardened and ground.
Application: For clamping workpieces (chuck or bar processing) in lathes (conventional or CNC-controlled) in the spindle or in the collet chuck.
Technical data
| Clamping range mm |
increment mm |
Ø d mm |
Ø D mm |
L mm |
α ° |
| 1.0 - 6.0 |
0.1 |
8.0 | 12.0 | 42.0 | 16° |
- Round hole: smooth ≤ Ø 6.0 mm
- Only the nominal size can be clamped
- Grinding to intermediate dimensions possible on request
Availability:
14 in stock, ready to be shipped
Availability:
13 in stock, ready to be shipped
Availability:
5 pieces
Availability:
Out of stock
Availability:
5 pieces
Availability:
4 pieces
Availability:
3 pieces
Availability:
5 pieces
Availability:
5 pieces
Availability:
Out of stock
Availability:
10 in stock, ready to be shipped
SKU A001.0101.0010
Original price
27,50 €
-
Original price
38,00 €
Original price
Preis: 27,50 €
27,50 €
-
38,00 €
Current price
Preis:
Preis: 27,50 €
plus VAT (if applicable), plus delivery charges
