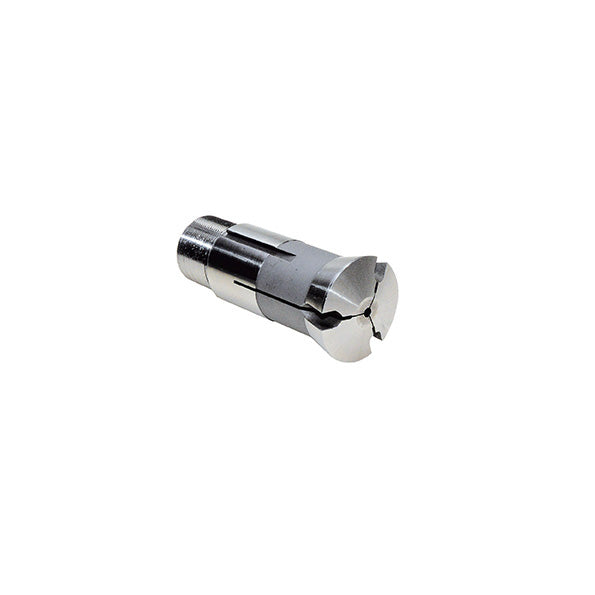

T223 (22.001) Round

Features: Adjustable guide bush with carbide insert for Swiss-type lathes for workpiece guidance or axial guidance of material bars
  • Carbide-lined for better wear resistance and therefore a longer life
  • high concentricity
  • 0.5 mm increment
Application: The guide bush is adjusted to the tolerance of the material to be machined using a manually adjustable nut

Technical data
Clamping range
mm
increment
mm
Ø d
mm
Ø D
mm
L
mm
α
°

G A

1.0 - 21.0
0.5
28.0 34.0 82.0 16° M25x1
  • Available with extended carbide lining on request
  • Intermediate diameters available on request
      Availability:
      1 pieces
      Availability:
      2 pieces
      Availability:
      Out of stock
      Availability:
      2 pieces
      Availability:
      Out of stock
      Availability:
      Out of stock
      Availability:
      2 pieces
      Availability:
      1 pieces
      Availability:
      Out of stock
      Availability:
      1 pieces
      Availability:
      1 pieces
      Availability:
      Out of stock
      Availability:
      Out of stock
      Availability:
      Out of stock
      Availability:
      1 pieces
      Availability:
      1 pieces
      Availability:
      2 pieces
      Availability:
      Out of stock
      Availability:
      Out of stock
      Availability:
      Out of stock
      Availability:
      4 pieces
      Availability:
      1 pieces
      Availability:
      1 pieces
      Availability:
      Out of stock
      Availability:
      Out of stock
      SKU A022.0223.00150
      Original price 78,00 € - Original price 170,00 €
      Original price
      Preis: 78,00 €
      78,00 € - 170,00 €
      Current price Preis: Preis: 78,00 €
      plus VAT (if applicable), plus delivery charges
